LoRaWan Gateway

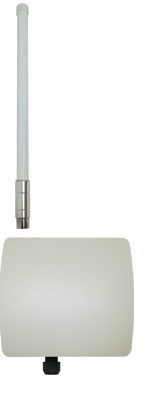

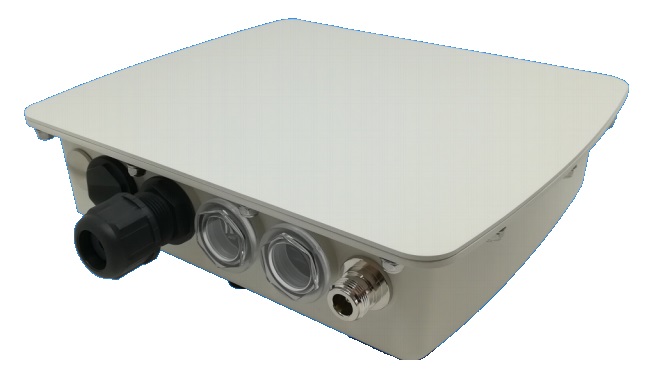

 ResIOT® X4 is the latest LoRaWAN™ Gateway/Base station Business-grade model. It is specifically designed for outdoor application thanks to its modern-designed IP67 aluminium case and waterproof components & connectors. This gateway works in a range of industrial temperatures, from -40 °C to + 85 °C. That’s makes our device suitable for every environmental conditions and this is the main reason of its wide market success. ResIOT® X4 provides durable, low-power, wide area connectivity in support of M2M and IoT applications. It is perfect for demanding markets like Smart Grid, Energy, Telecom and Broadcasting.

LoRa is trademark owned by Semtech. LoRaWAN™ is trademark owned by LoRa Alliance V1.3 (EN) 31/05/2021

·         Four modes of use: LoRaWAN Gateway with ResIOT Merlin Base Station Client (for simple or carrier-grade networks with full remote control and secure connection with ResIOT GW Remote Access Server) LoRaWAN Gateway with Semtech Packet Forwarder Industrial IoT Box. On-premises ResIOT LoRaWAN Network Server and ResIOT IoT Platform all in a box with free unlimited license Hybrid Mode 1+3 LoRaWAN Gateway with ResIOT Merlin Base Station Client & Industrial IoT Box

·         It can be powered with PoE or DC12-24 Volt, or both at the same time for Uninterruptible Power Supply

  Example: Modbus RTU RS-485 connection to external devices or solar panel control system. Optional: RS-232, CAN-bus

·         Chip SIM MFF2 included and ready to activate (worldwide connectivity! Visit sim.resiot.io). MicroSIM 3FF slot available. You can use your own SIM Card (ChipSIM will be automatically deactivated)

·         2G-3G-4G LTE Modem Quectel EG91x

·         GPS module ublox MAX-M8Q (concurrent reception of up to 3 GNSS)

·         Semtech SX1301, FPGA, Listen Before Talk, Spectral Scan (from the last quarter of 2021 Semtech SX1303, new generation of LoRa® baseband processor with Fine Timestamp capability that enables Time Difference of Arrival (TDOA) network-based geolocation)

·         Support for class A, B, C (B only with GPS/GNSS version)

·         Embedded Accelerometer, Shock, Inclination, Temperature & Humidity Sensors

·         KIT Toolchain available for software developer

Wifi Optiona
