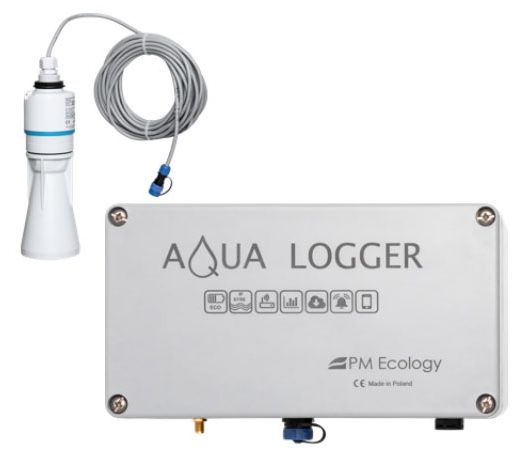

AQUA LOGGER RDR COMPACT

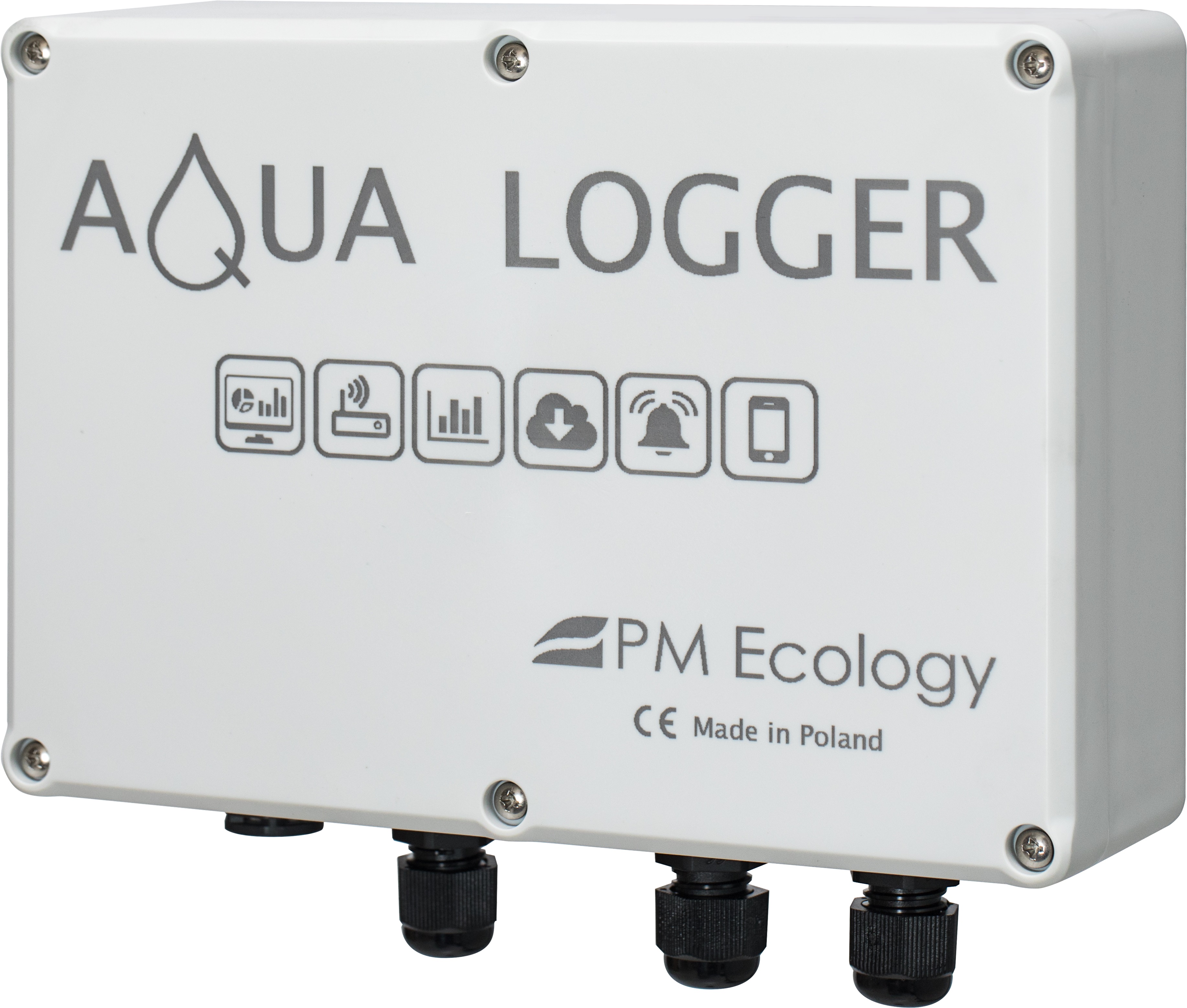

It is a compact water and wastewater level station with a radar sensor. The logging device and battery supply are both enclosed in a 220 x 120 x 90mm housing.
Such configuration allows Aqua Logger RDR COMPACT to be suitable for level monitoring in closed channels, sewage wells, small scale sewage pumping stations and similar locations where compact size of a device is important. There are three protection levels available: IP67, IP68 and IP67 ATEX.
The station is powered by a set of Lithium batteries placed inside the housing. With a measurement taken every 10 minutes and the data transmission made every 4hours, the station is able to operate for 5 years minimum.

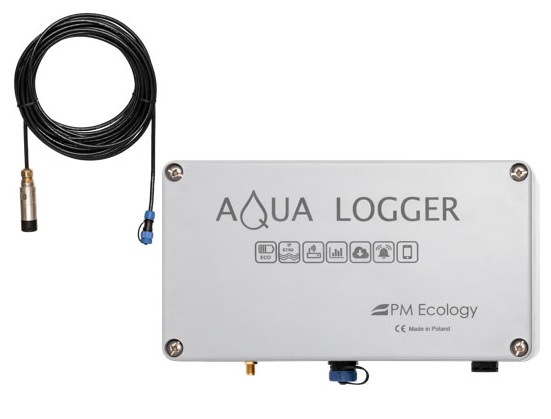

AQUA LOGGER HS COMPACT
Compact water and sewage level measurement station operating with a submersible pressure transmitter. The station uses a contact method of measurement – the transmitter is submerged in water or other liquid.
Unlike radar sensor, the measurement with a pressure transmitter is much less power-consuming. The station is especially dedicated to sites where frequent data sampling is required.
Aqua Logger HS COMPACT is powered by a set of Lithium batteries placed inside the housing. With a measurement taken every 10 minutes and the data transmission made every 4 hours, the station is able to operate continuously for 10 years minimum.
Ultra-low power consumption
Non-contact measurement
Compact housing with integrated lithium batteries
Three protection levels available: IP67, IP68 and IP67 ATEX.
Built-in GMS/GPRS data transmission
Full remote configuration
Data accessed through every web browser
Possible data transfer directly to user’s server
Text and email notifications
Increase of measurement and data transfer intervals when threshold values are exceeded
